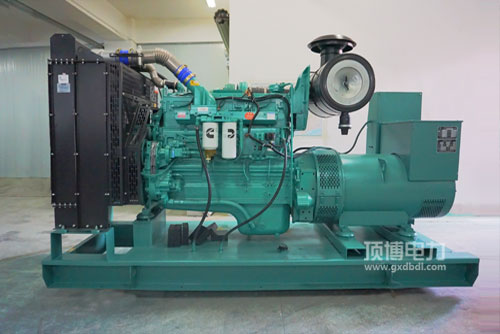

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用热车机气油经济效益性好: 现代化的气油管理设备，才有的STC、ESTC 级别划分管理设备，特殊性设计的的发动机活塞最上层引燃室，直流高压引射气油，有效吸雾，引燃有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用热车机瞬态性能参数不错: 极致的热车机整个装修设计，相互配合康明斯独一无二的EFC系统软件，设定高精准性高，反映的时间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用打火机升工作功率高: 全局设计的概念主体工程.外观形状布置图合理合法，运营平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷苹果机型 QSNT. QSK19. QSK38. QSK50充分考虑全球非道路交通第三步时段及中美洲Tier2. Tier 3污染物法律规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理即得性好， 发起机运转及维修调养调养体验，成本预算低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工率使用范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净性能 Dry Weight   940kg

224-310KW康明斯发电机组用打火机的特征 ：体积大小小， 再压缩比较高， 集水管空气当中高温，利于打火，中国移动汽车导航电源模块的最佳选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起主观因素参数	经常用到电机功率(kW)Prime Power	自备马力kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
